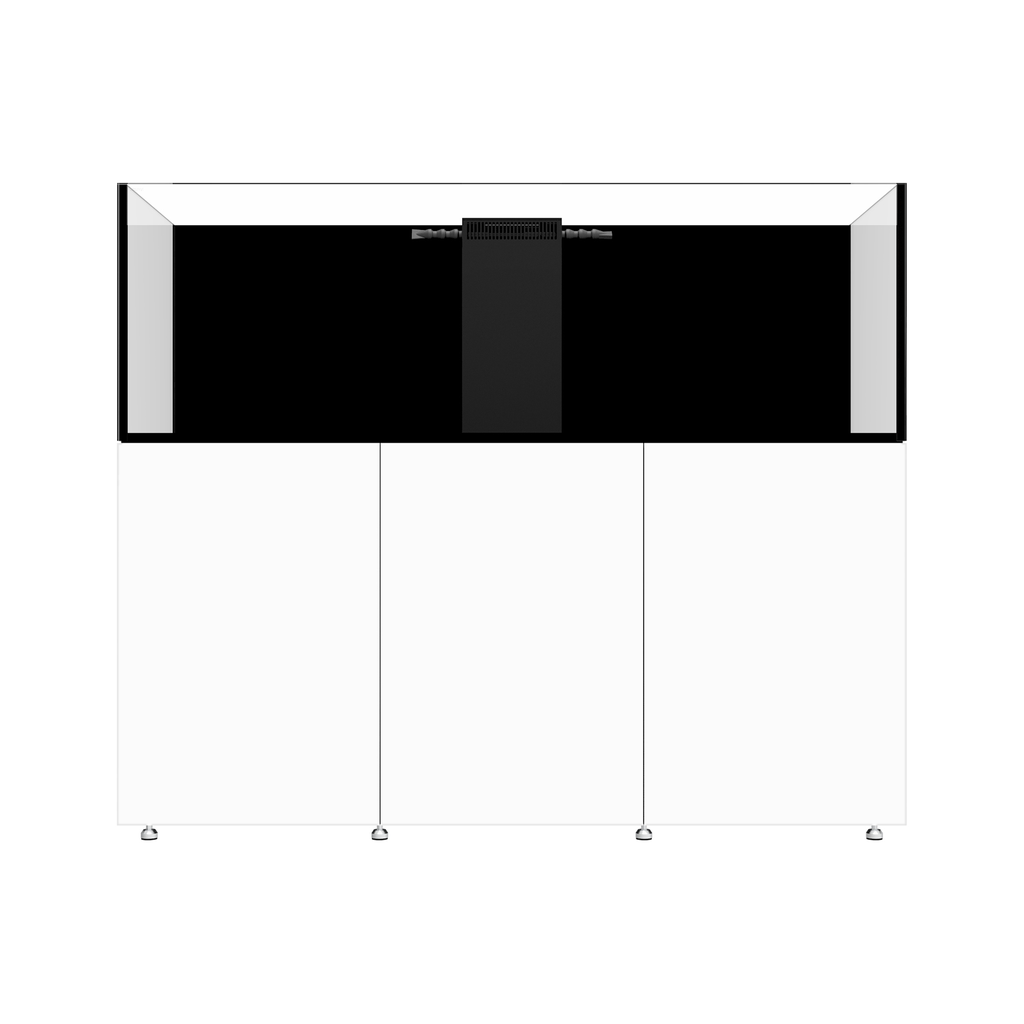

Waterbox Aquariums – INFINIA Reef 230.6
Overview
The INFINIA Reef 230.6 is Waterbox's most dynamic aquarium to date, designed to meet the needs of serious reef keepers and aquascaping enthusiasts alike. With wide dimensions, 3/4" ultra-clear Starphire glass, an integrated filtration system, and ready-to-assemble plumbing, the INFINIA 230.6 offers a no-compromise reefing solution. Built for scale and performance, this system is ideal for advanced aquascapes, SPS coral gardens, and high-flow reef environments.
Key Features
- 91% transmittance low-iron Starphire glass for unmatched clarity
- Oversized aquascaping dimensions with a balanced footprint
- High-capacity sump with refugium & ATO reservoir included
- Plug-and-play plumbing with manifold & check valve
- MarineShield aluminum-frame cabinetry in black or white
Ultra-Clear Display Tank
Crafted from 19mm (3/4") thick low-iron glass, the INFINIA Reef 230.6 ensures crisp visibility and strong structural support. The rimless design and black silicone provide a sleek, modern aesthetic, while the factory-attached leveling mat ensures stability on uneven surfaces.
- Display Dimensions: 72.3" L x 25.3" W x 23.6" H
- Aquarium Volume: 167 Gallons
- Total System Volume: 231.2 Gallons
- Glass Type: 91% Transmittance Low-Iron (front & sides)
- Total Height with Cabinet: 60.1"
Optimized Sump Filtration
This reef-ready sump system delivers efficient mechanical, biological, and chemical filtration:
- 2x 7" filter socks with silencers
- Dedicated refugium chamber with adjustable baffle
- Large skimmer zone & return chamber
- Integrated 13.4 gal ATO reservoir
Sump Specifications
- Sump Dimensions: 45" L x 18.7" W x 15" H
- Sump Volume: 50.8 Gallons
- ATO Volume: 13.4 Gallons
- Glass Thickness: 8mm (5/16")
Silent & Secure Plumbing System
Includes a ready-to-assemble PVC plumbing kit for fast, glue-free installation:
- Main Drain: DN32 (40mm / 1.5")
- Emergency Overflow: DN32 (40mm / 1.5")
- Return Line: DN25 (32mm / 1.25")
- 2x Return Nozzles: DN20 (25mm / 1")
- Dual manifold & check valve included
MarineShield Cabinetry
Engineered for durability and aesthetics, the MSII 7225 cabinet is constructed with corrosion-resistant materials to withstand humid marine environments:
- Aluminum alloy frame with 18mm coated plywood doors
- Water-resistant aluminum composite side panels
- Adjustable leveling feet for stability
- Color Options: Black or White
Cabinet Specs
- Exterior Dimensions: 72.3" L x 25.3" W x 36.5" H
- Sump Compartment: 67.2" L x 21.3" W x 33.4" H
What’s Included
- 1x INFINIA Reef 230.6 Rimless Aquarium
- 1x MarineShield Cabinet Stand
- 1x Glass Baffled Sump System
- 1x ATO Reservoir
- 2x 7" Filter Socks with Silencers
- 1x Complete Plumbing Kit
- 1x Dual Reactor Manifold
- 2x Return Nozzles
- 1x Overflow Box with Lid
