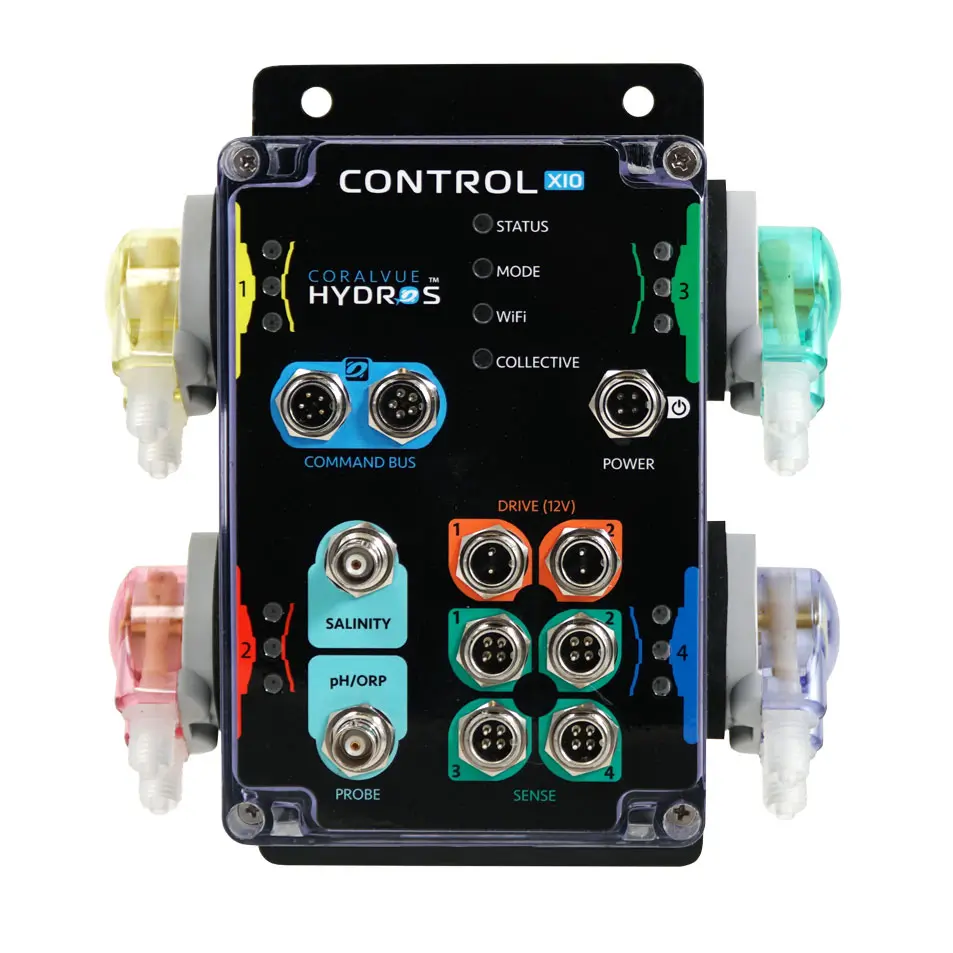

Coralvue - HYDROS Control X10

CoralVue – HYDROS Control X10

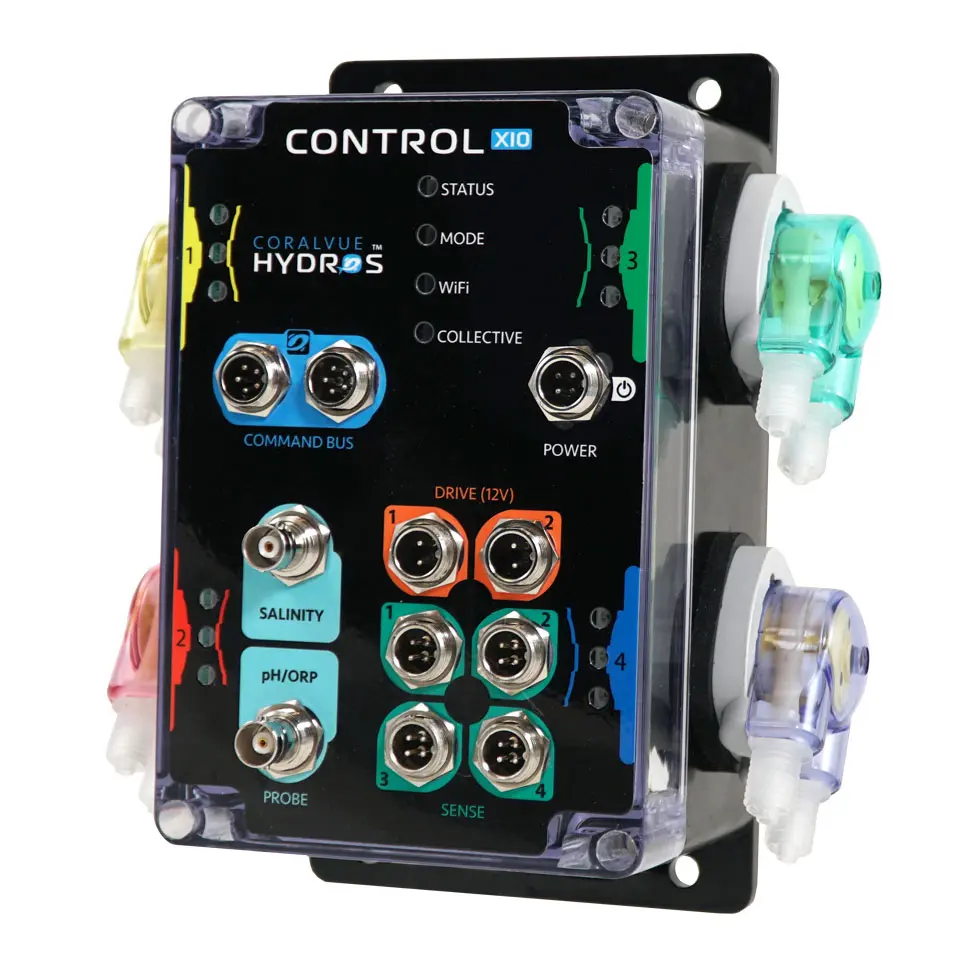

Overview

The HYDROS Control X10 is a powerful all-in-one aquarium controller designed to deliver unmatched versatility and precision for reef, freshwater, or pond systems. Featuring four ultra-precise stepper dosing heads, dedicated probe ports, dual Drive Ports, and four expandable Sense Ports, the Control X10 can independently monitor and automate your most critical aquarium parameters — including pH, ORP, temperature, salinity, water level, and more.

Whether used as a standalone brain or integrated into a broader HYDROS Collective, the X10 gives aquarists granular control over dosing, monitoring, and emergency failsafes – all via the intuitive HYDROS App. Built with IP65-rated enclosures, it’s engineered to thrive in the harshest aquatic environments.

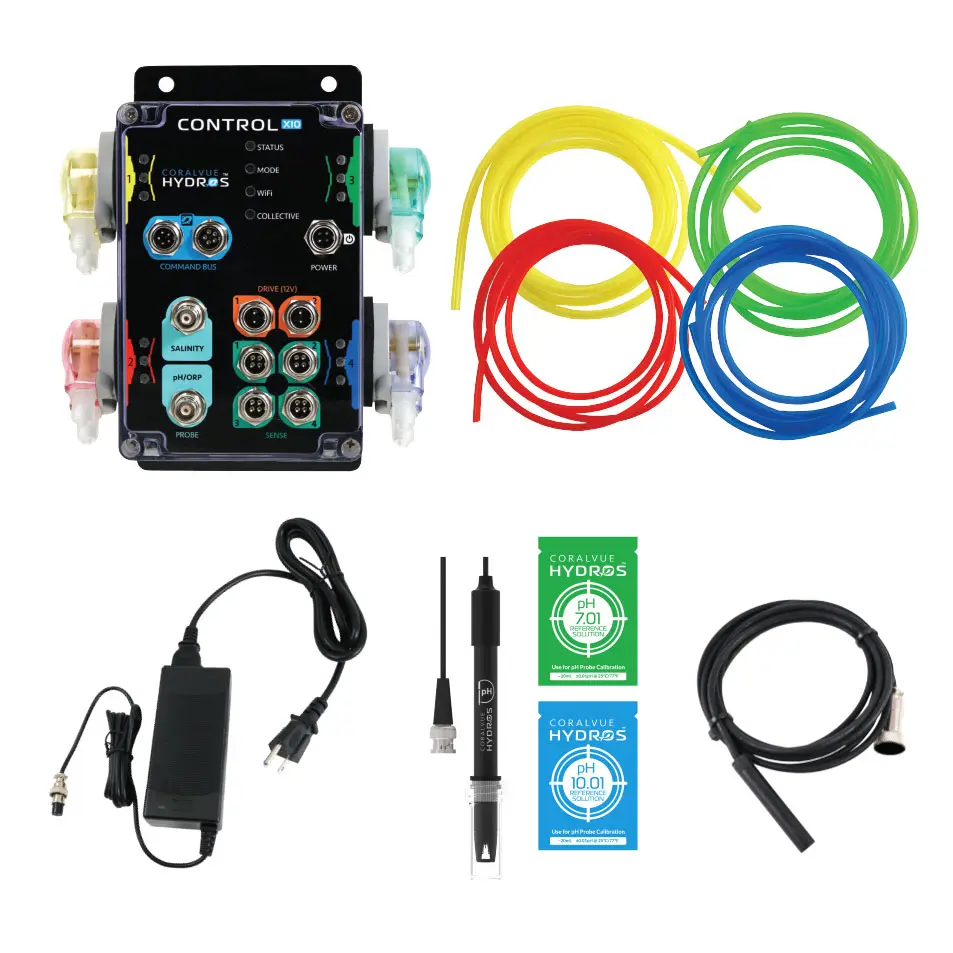

Included in the Box

• HYDROS Control X10 Controller
• Power Supply
• pH Probe with Calibration Solutions
• Temperature Sensor
• Four (4) 10ft Color Dosing Tubes
• Calibration Beaker

Key Features

• 4x Integrated Stepper Dosing Pumps
• 1x pH/ORP Probe Port (digital galvanic isolation)
• 1x Salinity Probe Port (probe sold separately)
• 4x Universal Sense Ports
• 2x 12V Drive Ports (for ATOs, fans, etc.)
• 2x Command Bus Ports
• Full integration with HYDROS App (WiFi & Cloud)
• IP65-rated body: splashproof, dustproof, corrosion-resistant
• Dual-core 32-bit processor
• Internal health monitoring (voltage, current, CPU, temperature)

Technical Specs

• Dimensions: 7.75" x 6.75" x 4.25" (L x W x H)
• Dosing Speed: -100 to 100 mL/min
• Min Dose: 0.1 mL
• Drive Port Output: Up to 1.5A (combined)
• WiFi Control Support: Up to 8 devices
• Construction: Aircraft-style connectors, industrial-grade housing

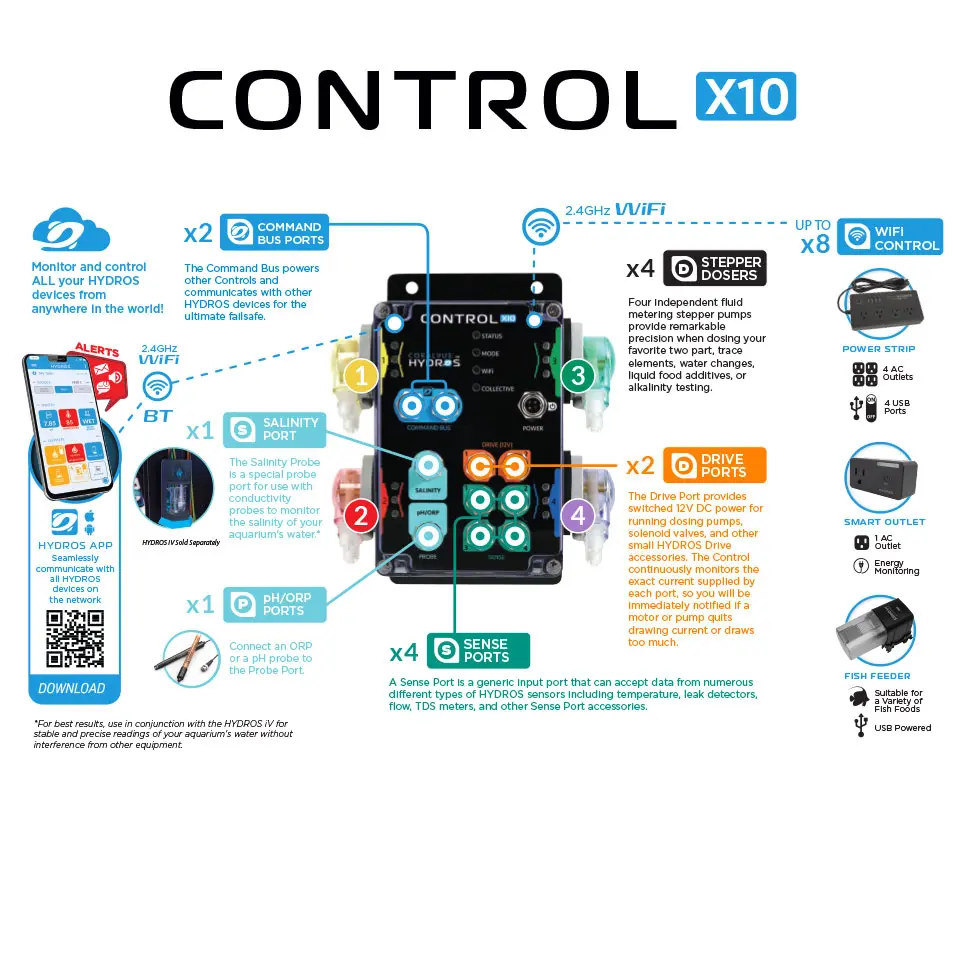

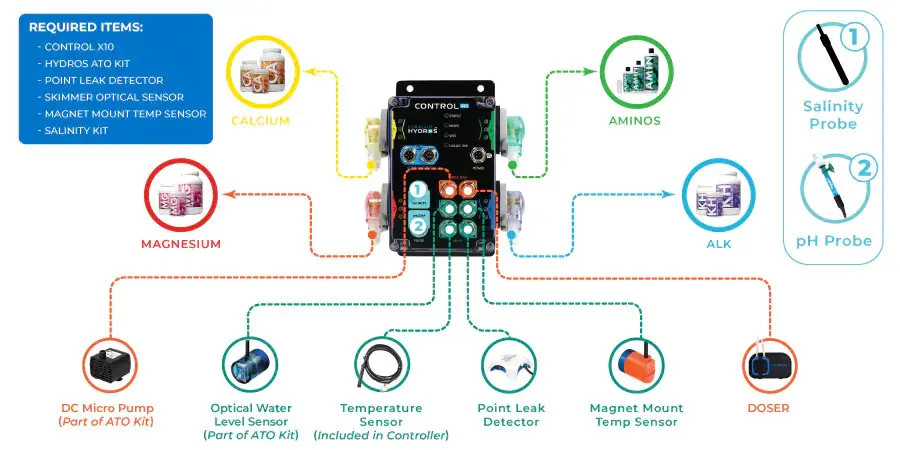

Port Breakdown

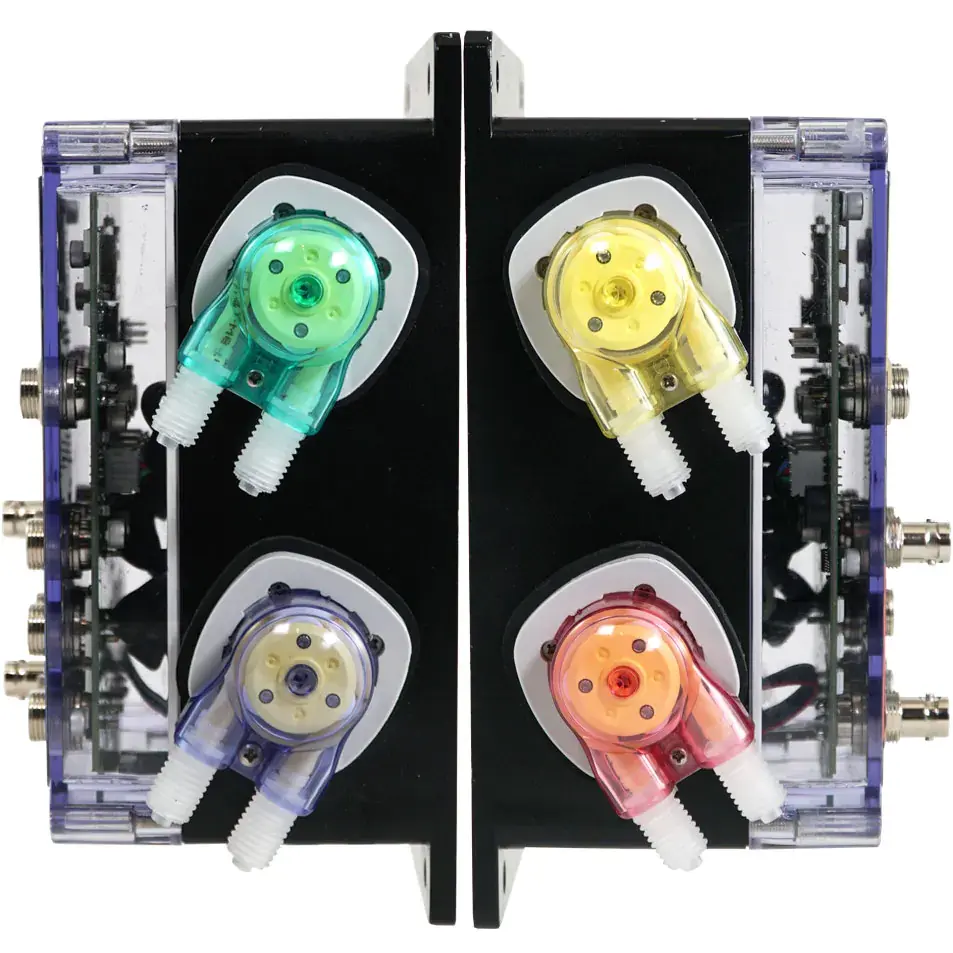

High Precision Stepper Dosers – 4x

Ideal for:

• Two-part dosing
• Trace elements
• Alkalinity/Calcium automation
• Liquid foods or supplements
• Continuous water changes

Features:

• Color-coded heads & tubing
• Forward & reverse functionality
• Quiet operation
• Tool-free maintenance

pH/ORP Probe Port – 1x

Digitally isolated input ensures precise readings without interference from pumps, motors, or other powered components. Supports:

• pH monitoring
• ORP monitoring
• Alkalinity readings via external systems

Salinity Probe Port – 1x

Dedicated BNC connection for conductivity probes (probe not included). Requires an Isolated Testing Vessel (e.g., HYDROS iV) for optimal accuracy.

Sense Ports – 4x

Universal inputs compatible with:

• Temperature sensors
• Leak detectors (point & rope)
• Flow sensors
• Optical water level sensors
• TDS meters

Drive Ports – 2x (12V DC)

Run and monitor power to smaller 12V aquarium devices like:

• ATO pumps
• Dosing pumps
• Cooling fans
• Cabinet LED lights
• Solenoids & stirrers

Max Output: 1.5A total (0.75A per port recommended)

Command Bus Ports – 2x

Used to daisy-chain and integrate with other HYDROS controllers in a Collective. Transfers both data & power.

WiFi Device Integration

Control up to 8 HYDROS WiFi-enabled devices such as:

• Smart Plugs
• Power Strips
• Automatic Feeders
• Lighting Schedules
• Emergency Shutoff Routines

HYDROS App Control

• Full access from anywhere via cloud or local WiFi
• Drag-and-drop logic building – no coding required
• Rule-based automation: dose based on pH, temp, time, or custom triggers
• Real-time system health monitoring
• Intuitive interface designed for mobile

Warranty

• 1-Year Limited Warranty on the controller housing and electronics
• Dosing heads, tubing, rollers, and bushings are wear items not covered

Terms:

• Coverage applies only to the original purchaser
• Excludes damage from misuse, modification, or unauthorized repair
• Defect must be reported in writing within 10 days of discovery
• CoralVue will repair or replace defective units – no incidental or consequential liability
